Harken 40mm Carbo Block

Harken 40mm Carbo Block


This awesome block is super smooth and has an ultra reliable cam cleat. This block would be an upgrade for any MiniCat sailboat!

* * *

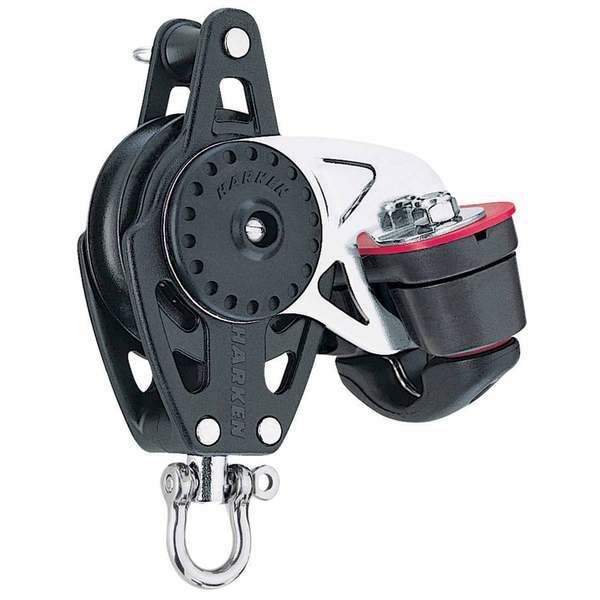

Harken 40mm Carbo Air® Single Block with Becket and Cam Cleat for quick wrist releases at the mark.

Low-friction Carbo AirBlocks® are lightweight, strong, reliable—and economical. Consistently 30% lighter and 60% stronger than equivalent Classic blocks. The sideplates are UV-stabilized, high-strength resin and designed for small-diameter lines favored by racers. Good for jib and mainsheet systems on high-performance dinghies, and for high-load control lines on small keelboats.

Recipient of both the Dame Award and Sail Magazine’s Freeman-Pittman Award for innovation, this innovative line of blocks turns fiber-reinforced composite construction into a reliable strength-to-weight ratio you can depend on. Companions to the popular Harken Black Magic block line, these small, compact blocks work well with very high working loads for easy trimming.

Key Features

  • High strength-to-weight ratio block
  • Harken’s most innovative blocks
  • 30% lighter, 60% stronger than equivalent conventional blocks
  • Smaller block for jib and mainsheet systems on high-performance dinghies
  • Use for high-load control lines on small keelboats
  • Stainless steel swivel shackle
  • Sheave Diameter: 1 9/16" (40 mm)
  • Max. Line Diameter: 1/4" (6 mm)
  • Max. Working Load (MWL): 300 lb. (136 kg)
  • Breaking Load: 600 lb. (272 kg)
  • Weight: 4.3 oz. (122 g)
  • Length: 4" (102 mm)
